Reference JOB 32 / Year c. 2009 / Client Various, Fremantle / Discipline Marine — Boatworks

Spinnaker pole bell, brace block and pole car

Three pieces of custom yacht hardware: a pole bell that lets spinnaker poles carry a mast down, a replacement brace block, and a pole car proposed for a sixty-footer.

Spinnaker pole bell

Designed and built to connect spinnaker pole ends to the deck when the poles are used as a support frame for lowering the mast.

Spinnaker brace block

The new block was designed to replace the old one — the before and after are both shown below.

Spinnaker pole car

A proposed design to replace the existing arrangement on a sixty-foot yacht.

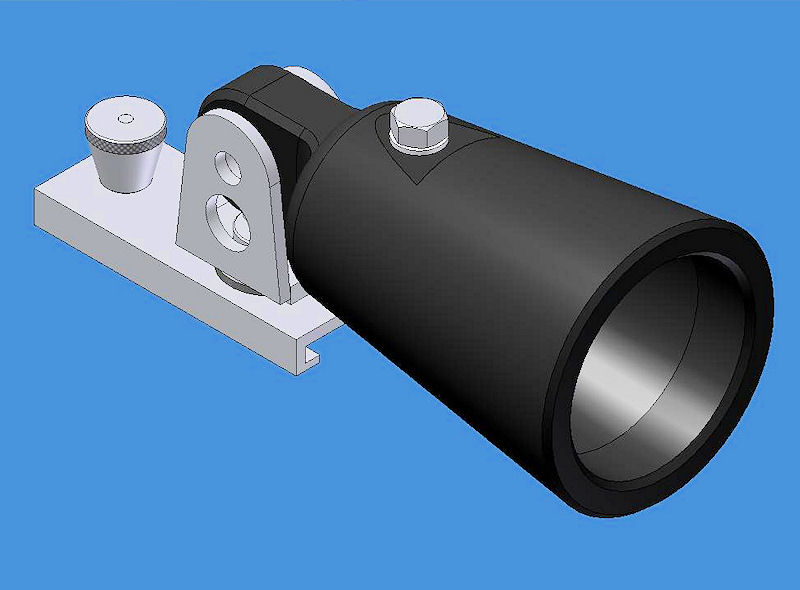

Spinnaker pole bell — the design.
01Spinnaker pole bell — the design.
The pole bell in action, carrying the rig down.
02The pole bell in action, carrying the rig down.

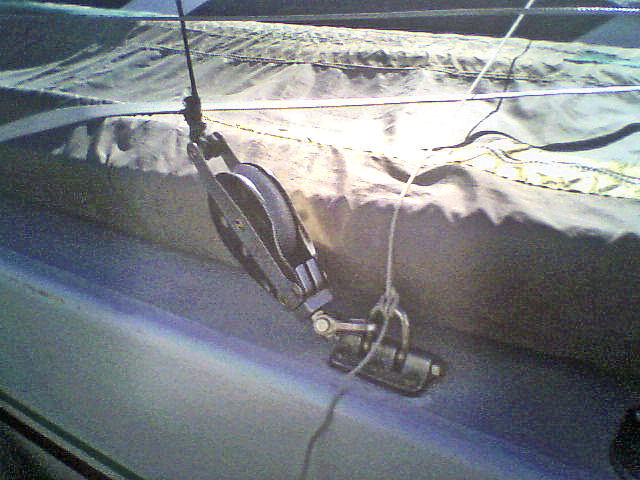

Before — the original brace block.
03Before — the original brace block.

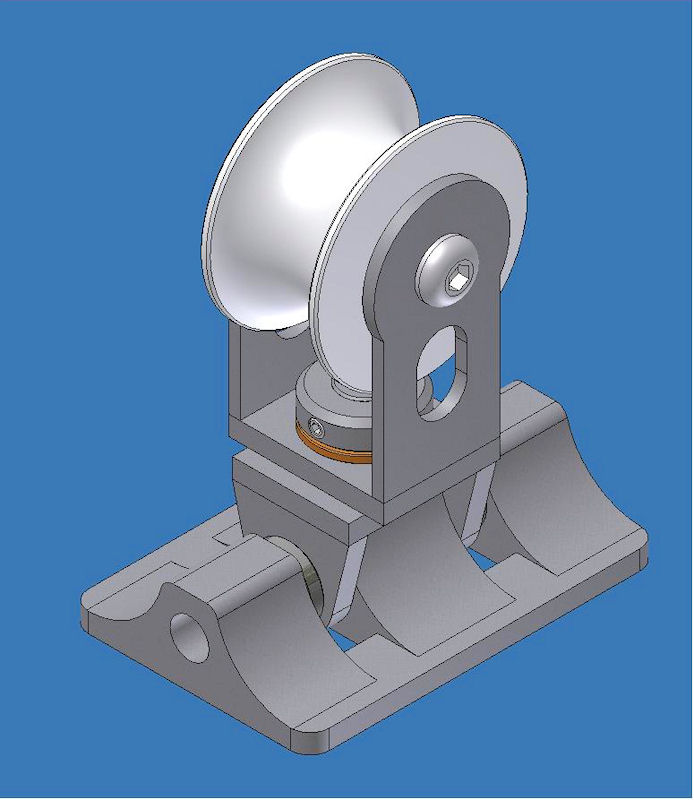

The replacement block, designed.
04The replacement block, designed.

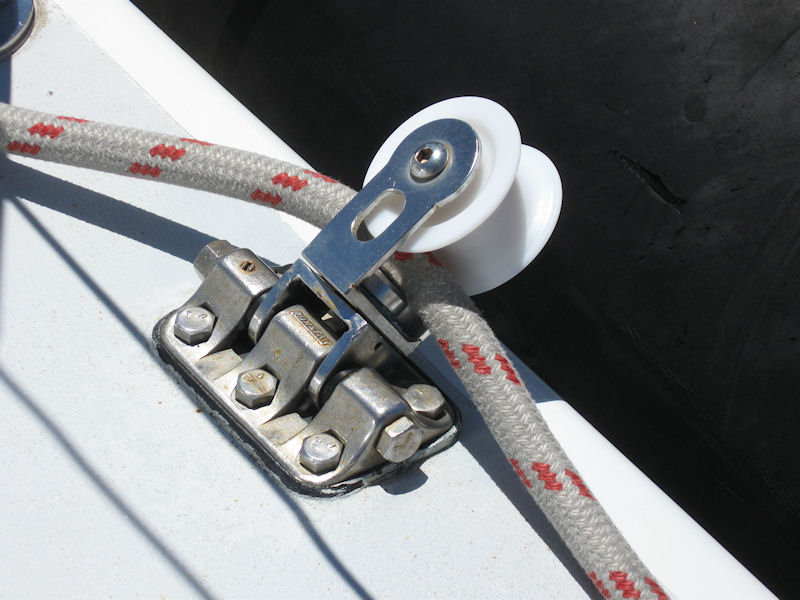

After — the new block fitted.
05After — the new block fitted.

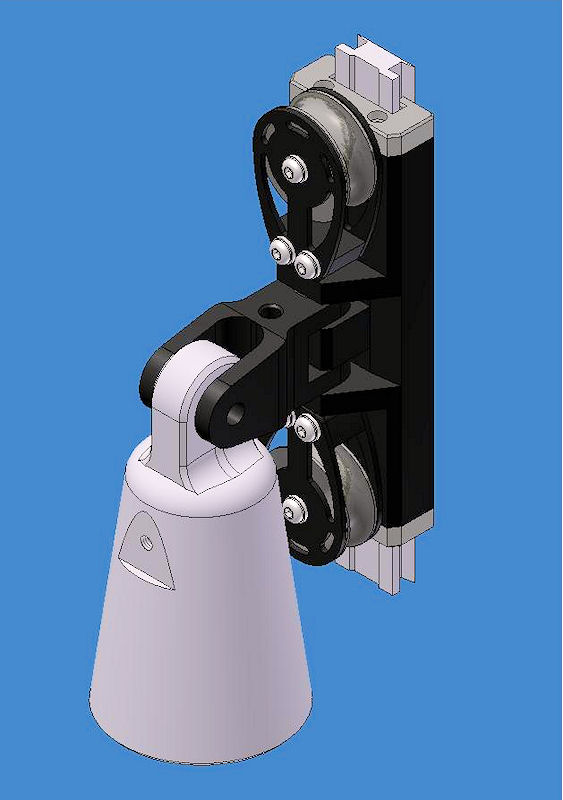

Proposed spinnaker pole car for a sixty-foot yacht.
06Proposed spinnaker pole car for a sixty-foot yacht.
